BOPP Film Packing Wrapping Machine

This machine is suitable for automatic film packaging (with gold wire) of single box items in various industries.

Availability:
Quantity:
  • ASL-300B

  • aslan

  • 2023120502

Product Description

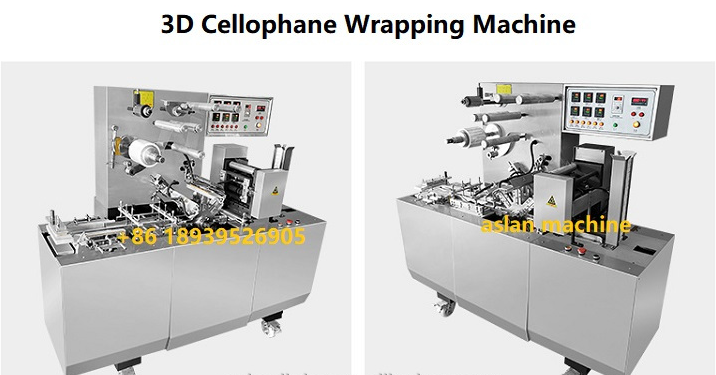

Automatic 3D box cellophane film wrapping packing machine


This machine is suitable for automatic film packaging (with gold wire) of single box items in various industries.
This machine is an excellent choice for small box packaging. It can provide a beautiful product display effect.
Let the product become high-end so that customers have the desire to buy,
Perfect for cigarettes, cosmetics, perfumes, nail polishes, pharmacies, pokers, condoms, CD etc.
It can play the role of moisture-proof, dust-proof and anti-counterfeiting, and improve the packaging grade of products and increase the added value of products.

SCOPE OF APPLICATION
This machine is an ideal equipment for three-dimensional packaging of cardboard boxes and products with BOPP film.
Suitable for automatic packaging of cigarettes, medicines, cosmetics, perfumes, food, playing cards, stationery, condoms, CD etc.
MAIN FEATURES
1. Adjustable packing speed: This machine adopts frequency conversion adjustment device, which can change the packing speed according to different work requirements.
2. The range of packaging size is adjustable: when the size of the packaged product changes, the machine only needs to replace the mold and make appropriate adjustments.
3. Adjustable heat sealing temperature: it can set the heating temperature according to the change of the external climate, and can keep it within the set temperature range.
4. Feeding device: It is composed of a combination of a feeding tray and a hopper, and the stacking type continuously feeds.
Name
Automatic Cellophane Film Wrapping Box Machine
Model
ASL-200A
ASL-300B
Power supply
220v 50/60hz
220v 50/60hz
Motor Power
3.45kw
4.25kw
Packing Speed
40-80 box/min
40-100 box/min
Packing Box Length
50-160 mm
50-280 mm
Packing Box Width
20-100 mm
20-150 mm
Packing Box Height
8-50 mm
10-80 mm
Machine Weight
600kg
650kg
Machine Dimensions
2000*790*1550 mm
2300*840*1550 mm
