Glass Bottle Washing Sterilization Drying Machine PET Bottle Washer Sterilizer Dryer

This machine is used to pre-process the bottles. no matter glass bottle or PET bottle both ok.
The whole process include the hot water washing sterilizating , and hot water drying with UV lamp steriliation machine.
Availability:
Quantity:
  • ASL-XPJ4500; ASL-XPJ6000

  • NO

  • 8438600000

Product Description

Glass bottle cleaning machine working principle:

Glass bottles need to be cleaned with clean water or pure water before drying (to avoid leaving stains and water marks on the bottle wall after drying), bottles Try to control most of the moisture inside. The temperature of the dryer is adjusted to between 180-240 degrees Celsius, the conveyor is adjusted to the appropriate speed, the glass bottle is placed on the conveyor belt, and the water inside the wide mouth bottle is dried after the high temperature inside the dryer, and the water inside the fine mouth bottle is basically dried.\



 Glass bottle cleaning machine Features:

The machine adopts SUS304 stainless steel roller mesh chain belt, stable operation, corrosion resistance, long service life and other characteristics, in line with food Hygiene requirements. This equipment is widely used for the cleaning of glass bottles after filling bottled food, and for canning canned food Before cleaning and disinfection of empty cans, there is a fully automatic high-pressure nozzle, which can rinse spray bottles and cans in an all-round way and rinse dry Clean and automatically powerful blow dry water stains. This machine can also be used for canteen hotel and other catering bowl professional cleaning, high pressure nozzle washing, strong Horsepower fan automatically dry water stains, no manual, automatic operation, simple and convenient.



Parameter:

Dimension

4500x850x1100mm

6000x850x1100mm

8000x850x1100mm

Capacity

500-800bottles/h

1200-2000bottles/h

2000-3000bottles/h

Motor

0.55kw

0.55kw

0.75kw

Voltage

380V/50Hz

380V/50Hz

380V/50Hz

Water pump power

0.55*2sets

0.75*2sets

0.75*2sets

Air pump fan power

5.5kw*1set

3kw/set*2sets

3kw/set*3sets

Water heating power

15kw

15kw

15kw

Electric drying power

15kw

15kw

 30kw

Mini-Max power

22.55-37.55kw

22.6-37.6kw

44.25-59.25kw

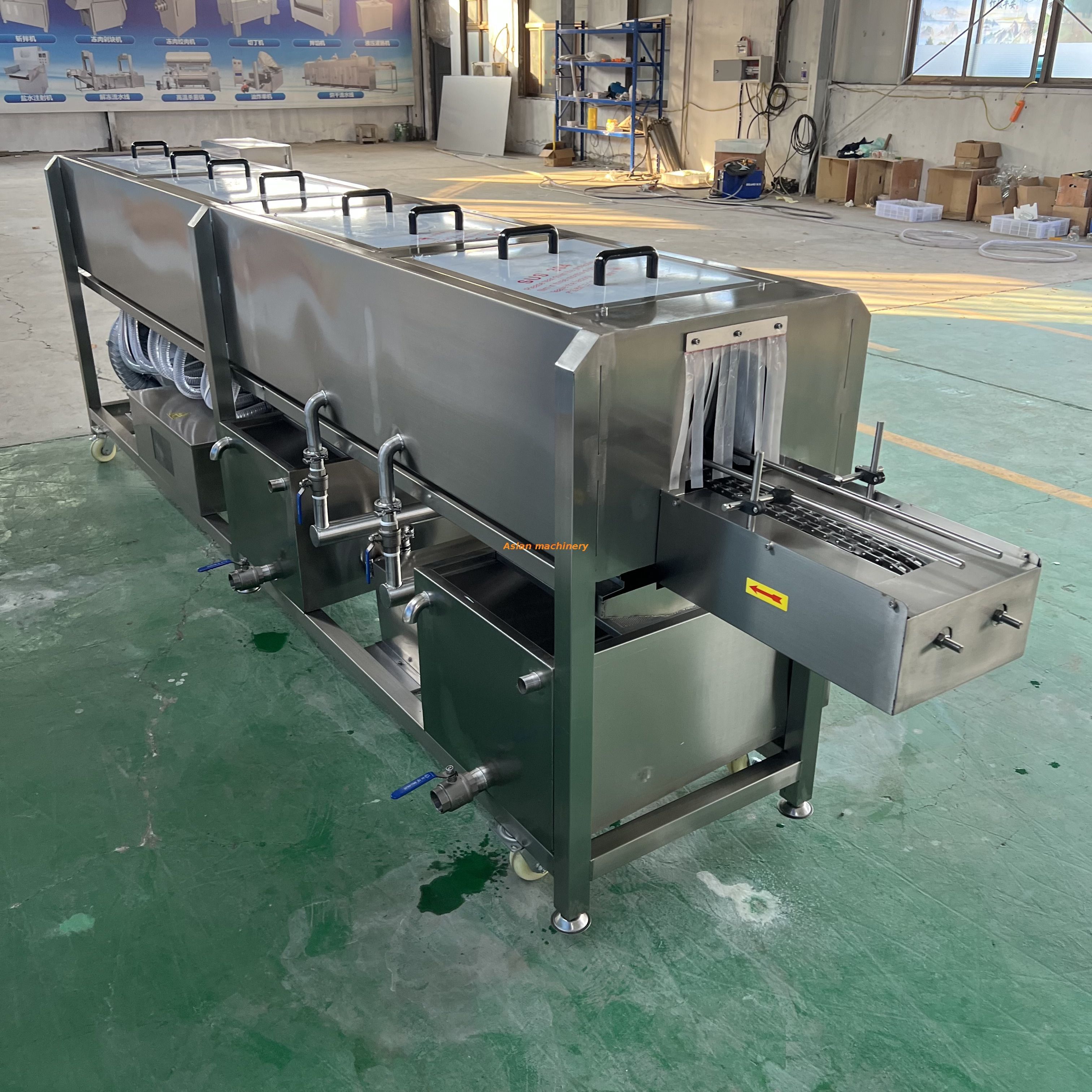

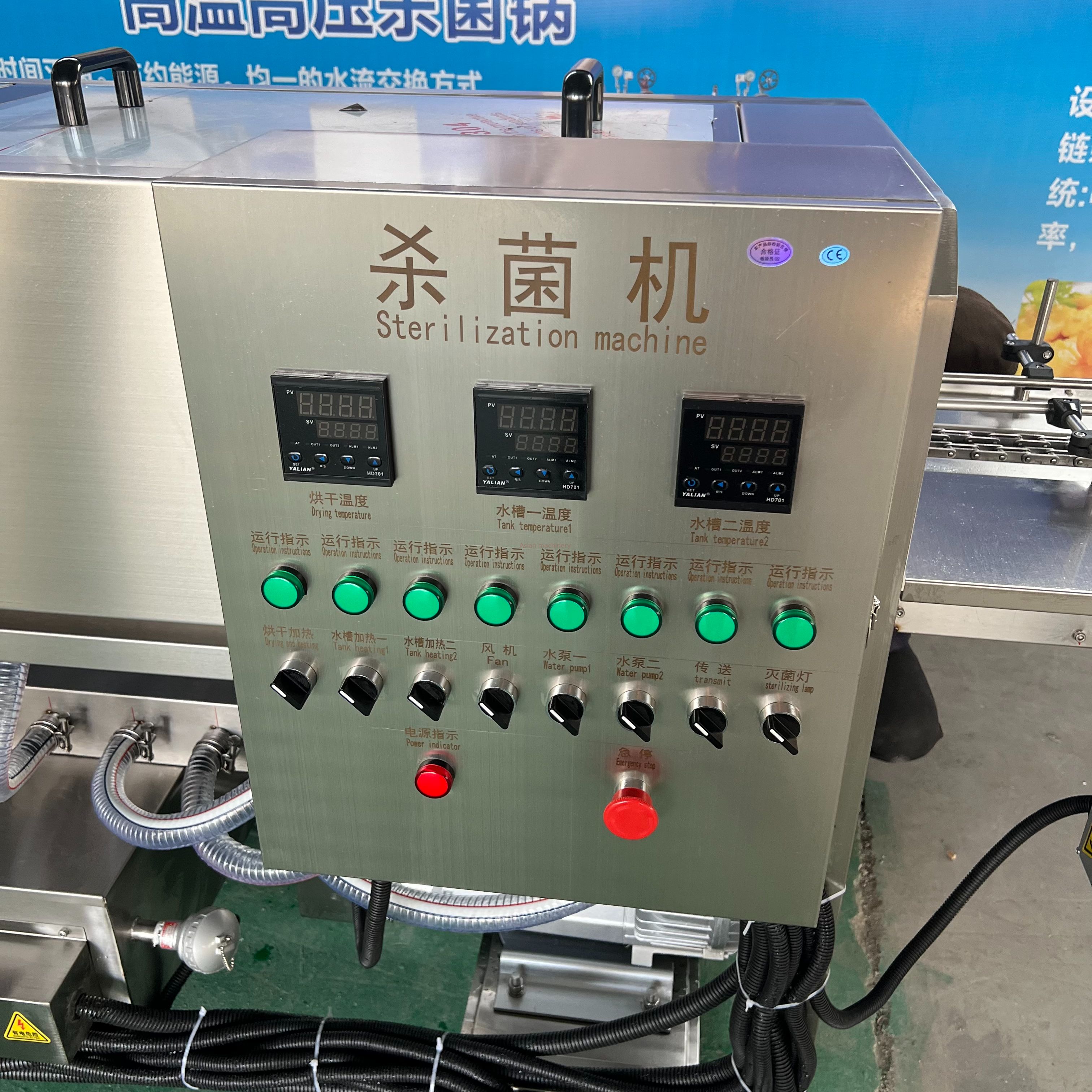

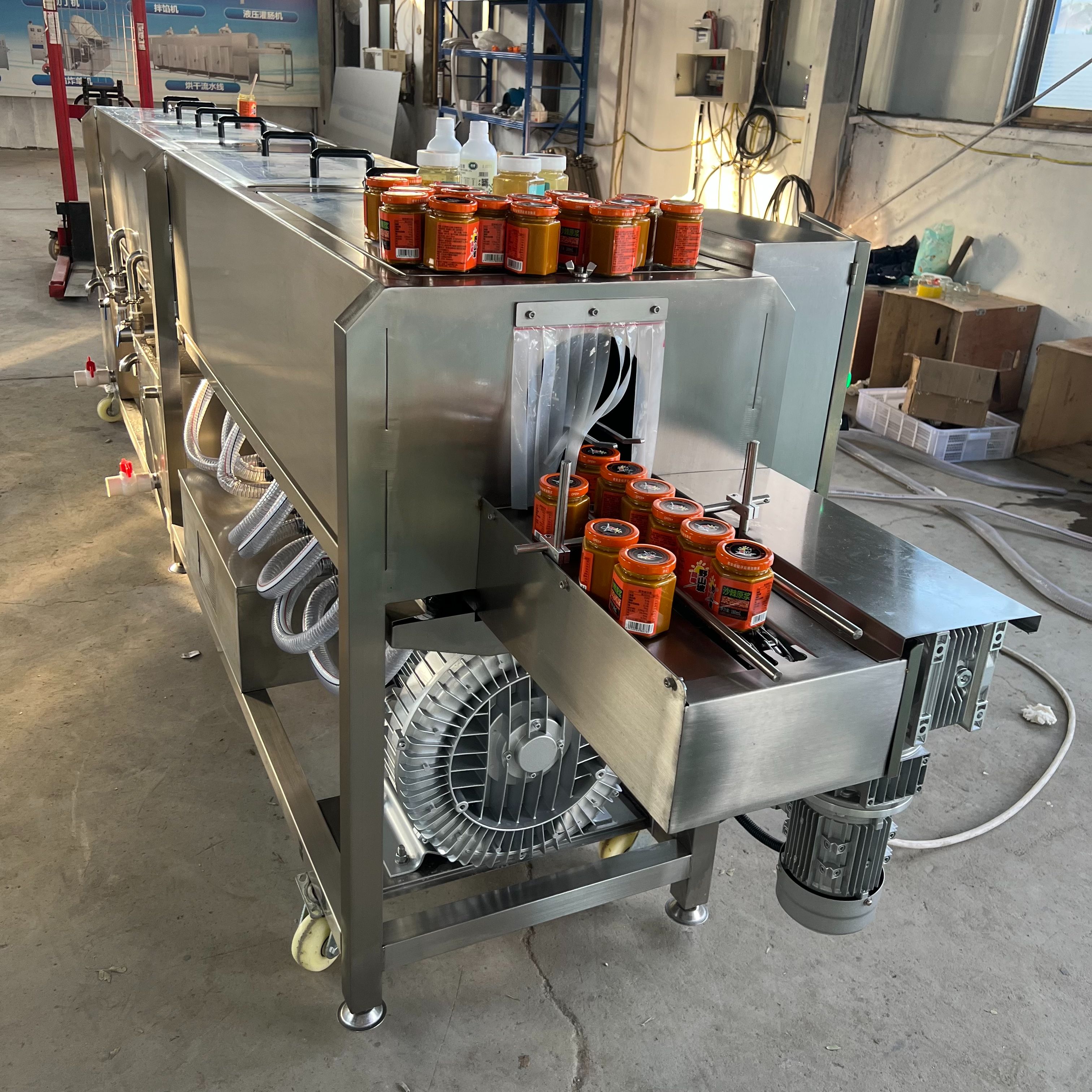

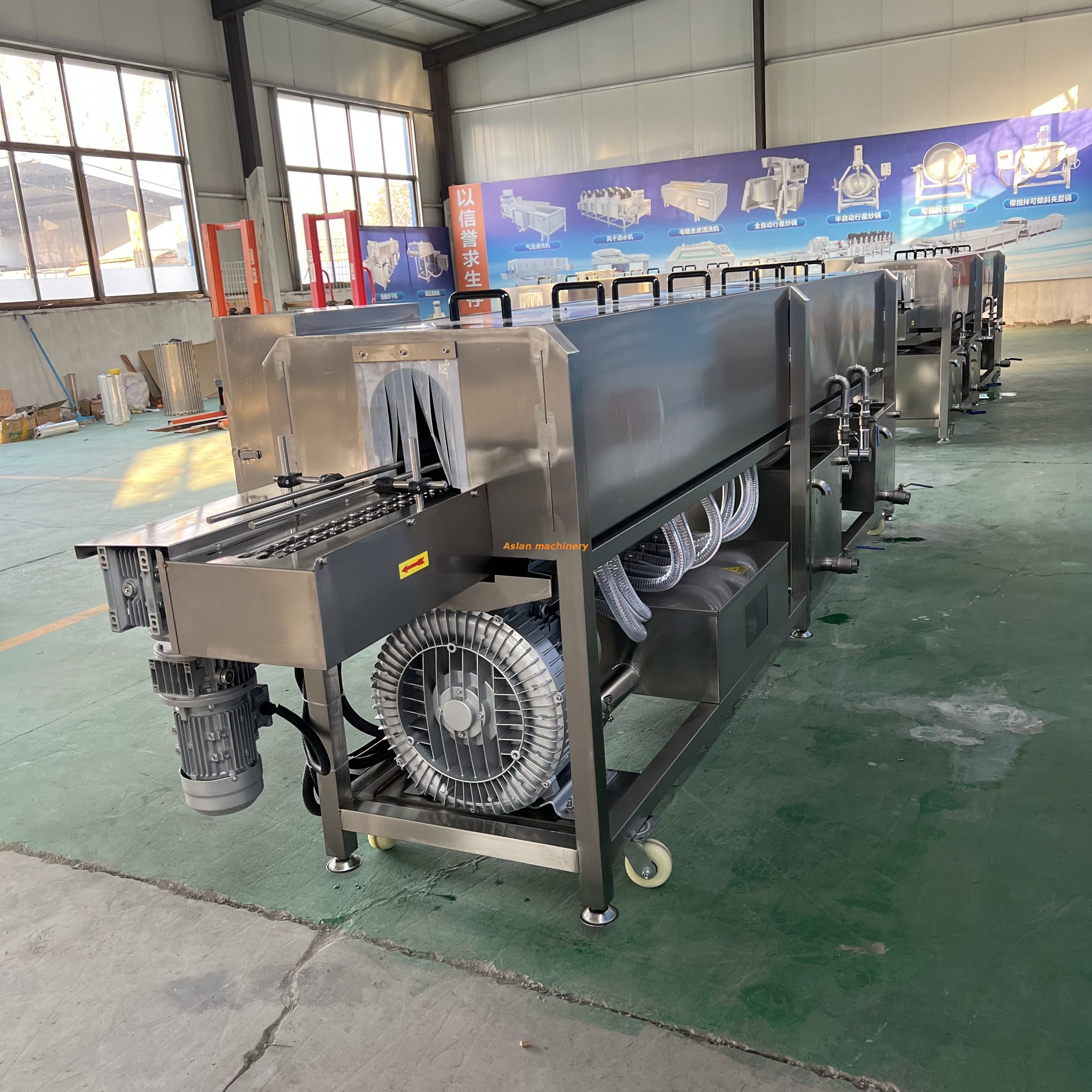

bottle washer sterilizer (1)bottle washer sterilizer (2)bottle washer sterilizer (3)
