sugar coating machine

sugar coating machine
  • BYC-800

  • Aslan machinery

  • 2023120604

Product Description

candy peanut snack food sugar coating machine

machine functions:this machine is based on standard sugar coating machine add sprayer sugar system to add flavor on food surface with heating function.

sugar coating machine with sprayer system Product description:

This machine based on standard sugar coating machine add automatic liquid sprayer system and outside heating system and the sugar pan speed is adjustable . it is mainly used to sprayer thick liquid on raw material surface .it is very popular be used on peanut ,snack food ,seeds surface add sugar . its with good working performance .

this sugar coating machine structure is durable.its consist of stainless steel frame, worm wheel box, coating pan, heating device, blower, electrical system, sprayer system and outside heater. the sprayer system inlcuded heating pot and sprayer pump and sprayer gun . The transmission process that the motor drive the worm wheel and worm via triangle belt make the coating pan rotate and then the sprayer system working spraying the liquid into pan ,then sugar pan rotate speed adjustable ,during its running , the material erithe and revolve up and down in the coating pan,the sparyer liquid is mixed well with the raw material and under the hot air and outside heating system that even mixing, pelletizing and polishing can be completed well also .

sugar coating machine technical parameter:

model pot diameter capacity rotation speed power air fan power insideheating power Insulation heating power
BYC800 800mm 30-50kg/time 0-32r/min 1.1kw 0.12kw 3kw 1kw
BYC1000 1000mm 50-70kg/time 0-32r/min 1.5kw 0.12kw 3kw 3kw
BYC1250 1250mm 80-150kg/time 0-28r/min 3.0kw 0.18kw 6kw 1kw
BYC1500 1500mm 200-300kg/time 0-26r/min 5.5kw 0.25kw 6kw 3kw

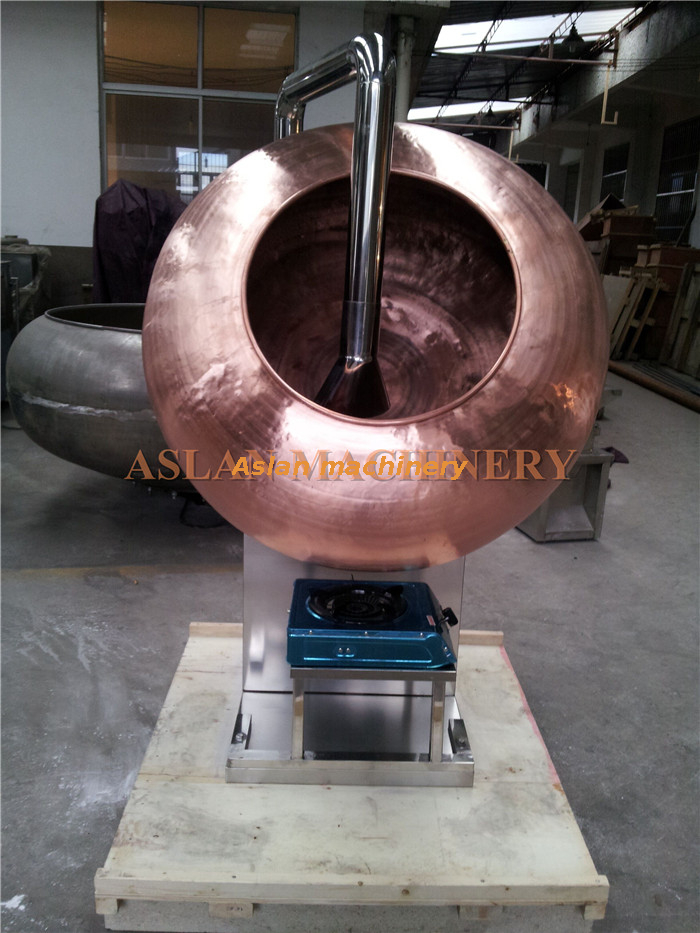

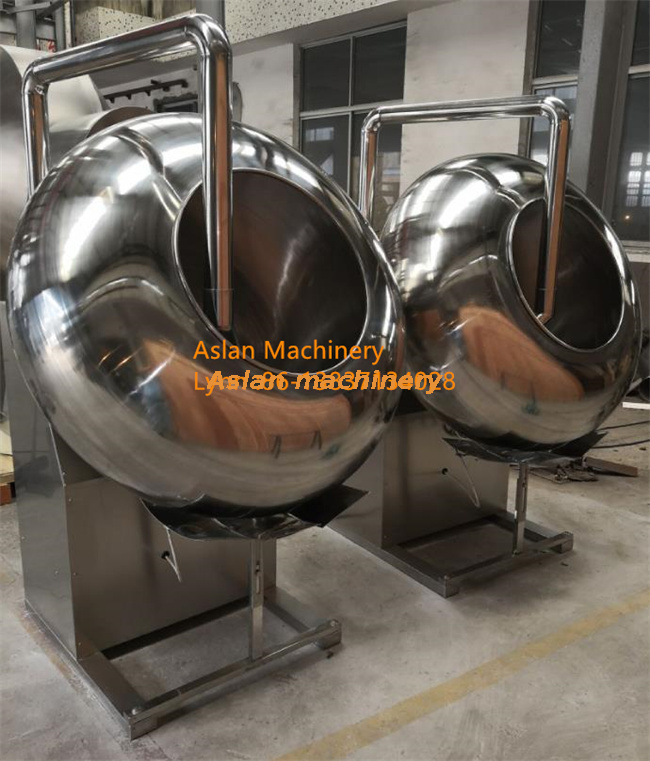

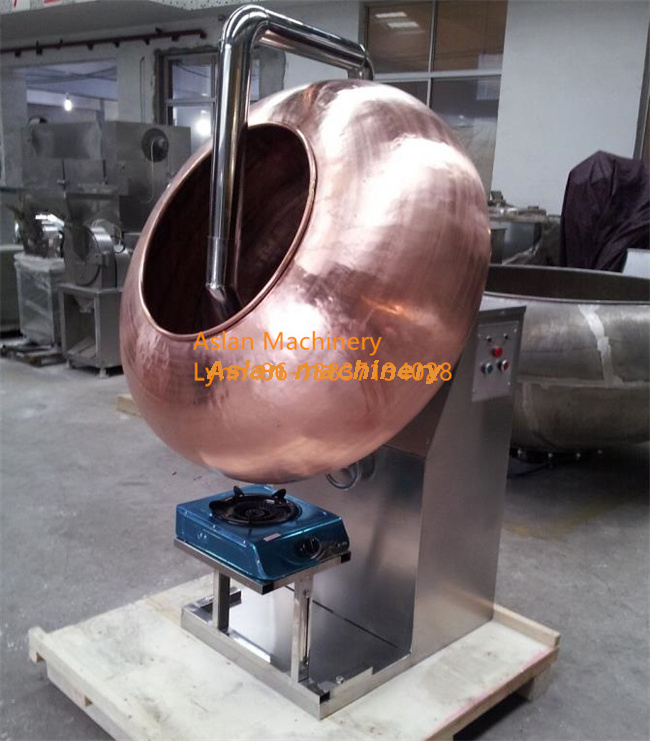

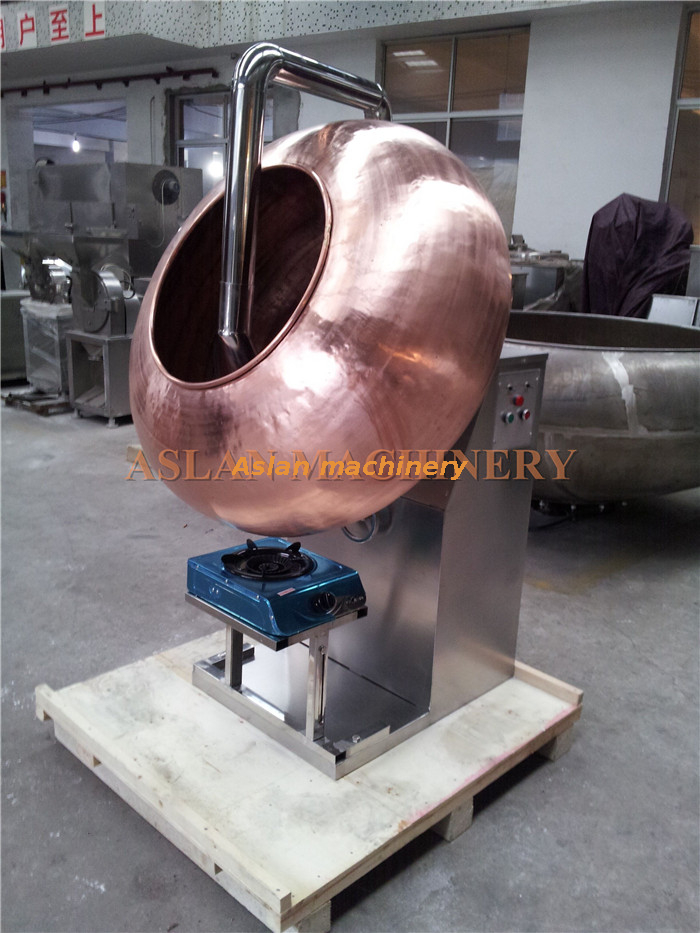

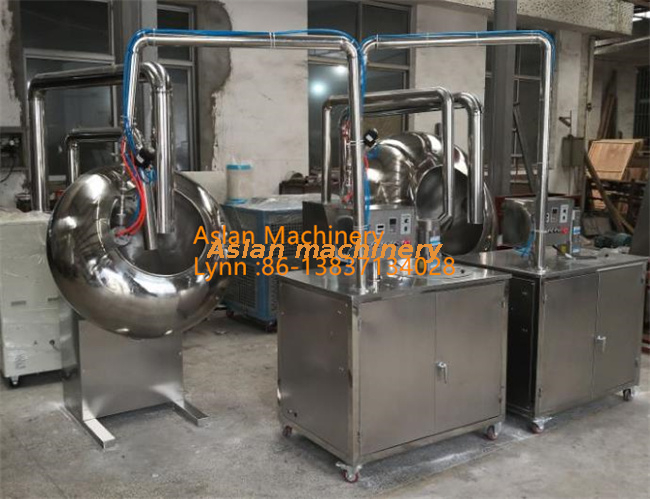

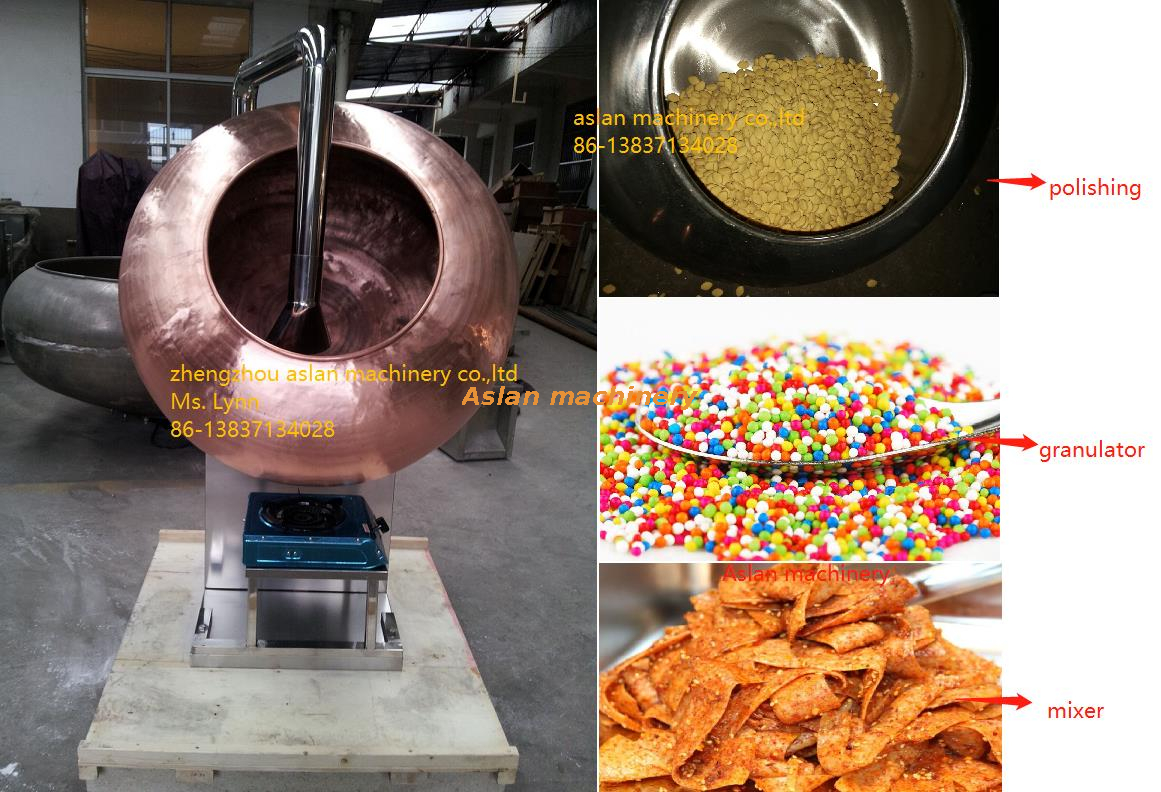

sugar coating machine photos :

sugar coating machine 22sugar coating machine 0111sugar coating machine 0110

sugar coating machine (4)sugar coating machine (3)sugar coating machine 0108

weclome contact with us for more information .
